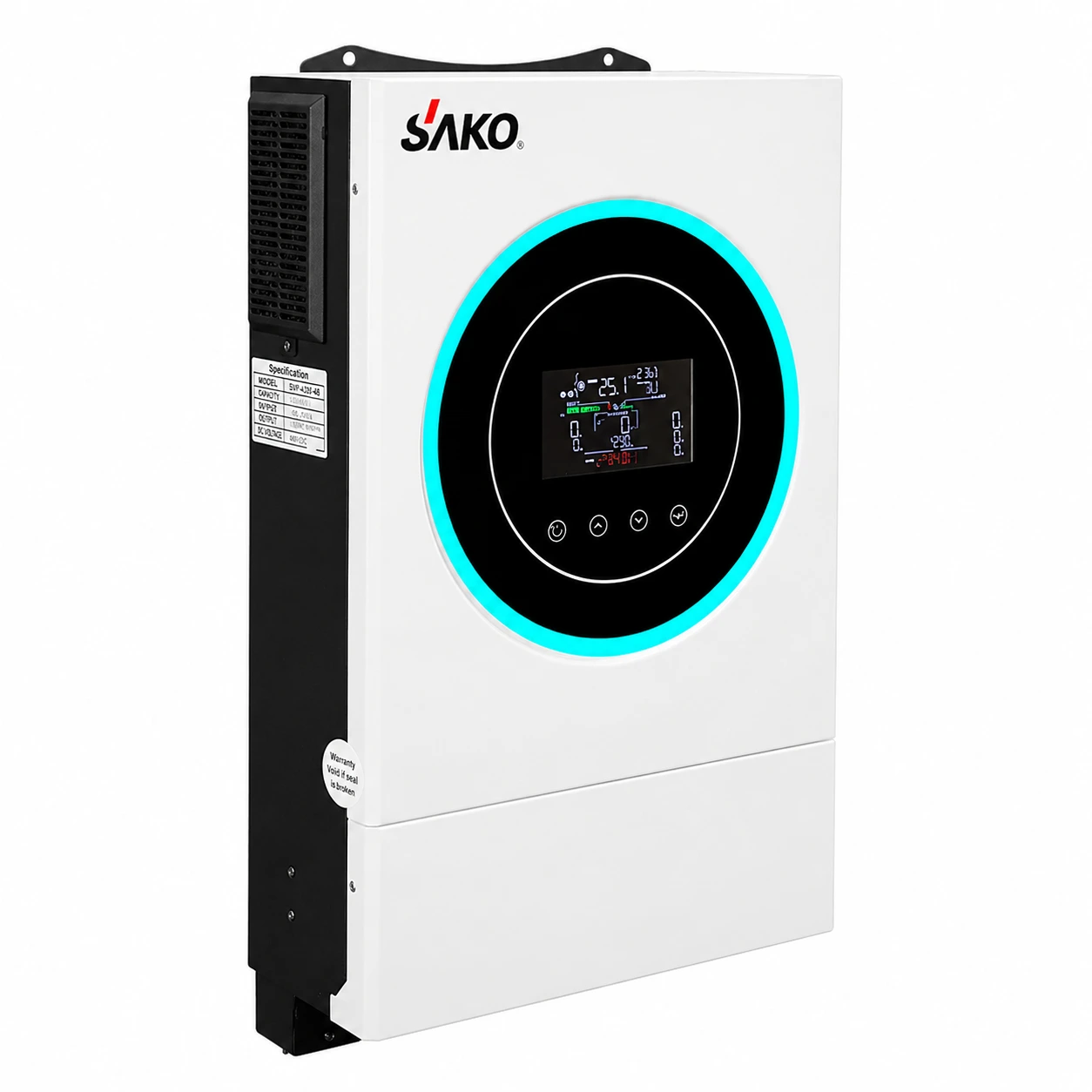

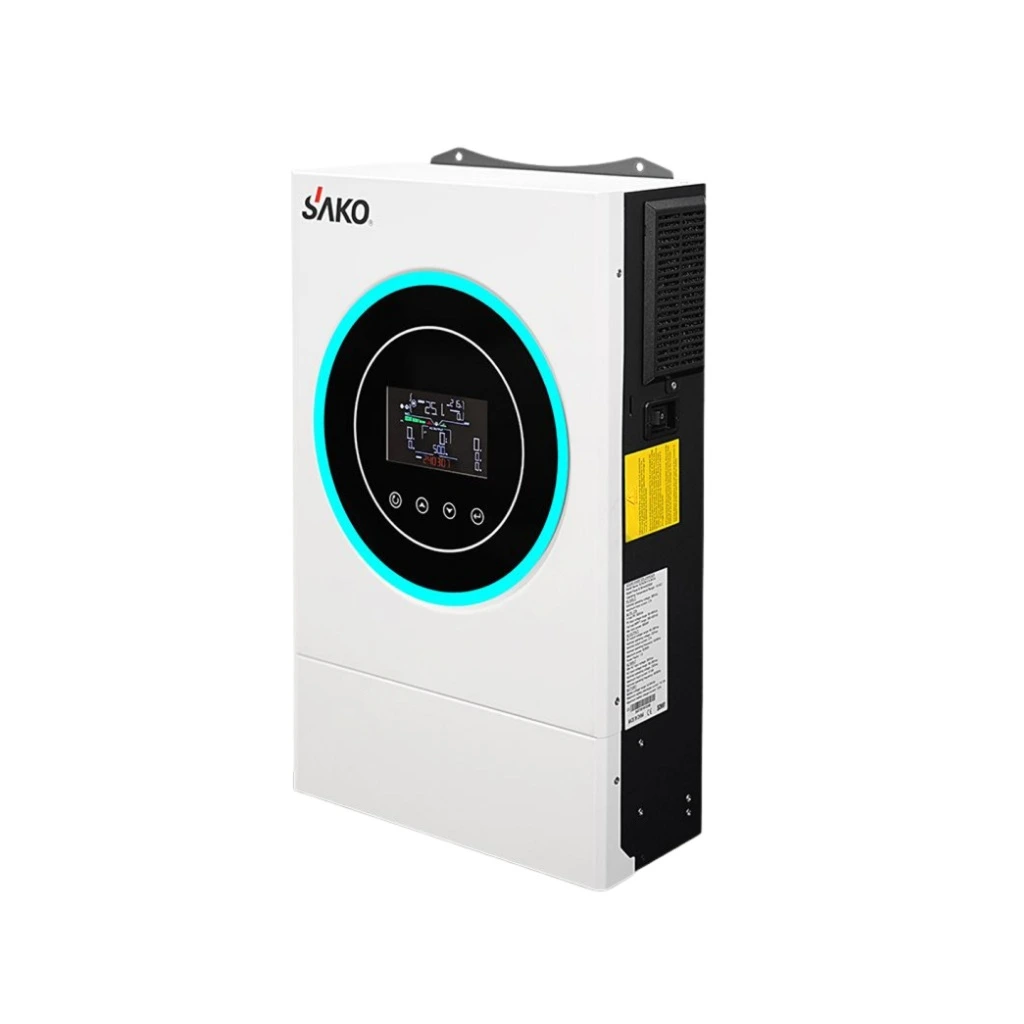

The Sako Sunon-V 4.5 kVA 24 V Off-Grid Hybrid Solar Inverter is a high-performance solar power solution designed for homes, offices, and small commercial applications. It delivers pure sine wave output to safely run sensitive and high-load appliances and features a built-in high-efficiency MPPT solar charge controller for maximum solar energy utilization. Supporting lithium (LiFePO4) and lead-acid batteries, the inverter ensures smart battery protection, high surge capacity, and fast transfer time. With an intuitive LCD display and flexible solar, battery, and grid priority settings, it provides reliable and efficient off-grid power while reducing dependence on utility electricity.

Technical Parameters –

SAKO Sunon-V 4.5 kVA / 24 V

Model

·         SUNON-V 4.5KVA / 24V

Rated Power

·         4500VA / 4200W

Battery

·         Battery Voltage: 24 VDC

·         Floating Charge Voltage: 27 VDC

·         Overcharge Protection: 33 VDC

Input

·         Input Voltage: 230 VAC

·         Selectable Voltage Range:

o    170–280 VAC (For Personal Computers)

o    90–280 VAC (For Home Appliances)

·         Frequency Range: 50 Hz / 60 Hz (Auto Sensing)

Output

·         AC Voltage Regulation (Battery Mode): 230 VAC ±5%

·         Surge Power: 8400 VA

·         Efficiency (Peak): 90% – 93%

·         Transfer Time:

o    10 ms (For Personal Computers)

o    20 ms (For Home Appliances)

·         Waveform: Pure Sine Wave

Solar Charger & AC Charger

·         Solar Charger Type: MPPT

·         Maximum PV Array Power: 5000 W

·         Maximum Input Current: 27 A

·         MPPT Operating Voltage Range: 60–450 VDC

·         Maximum PV Array Open Circuit Voltage: 500 VDC

·         Maximum Solar Charge Current: 120 A

·         Maximum AC Charge Current: 100 A

·         Maximum Charge Current: 120 A

Physical

·         Packing Dimension (D × W × H): 583 × 380 × 214 mm

·         Net Weight: 9.6 kg

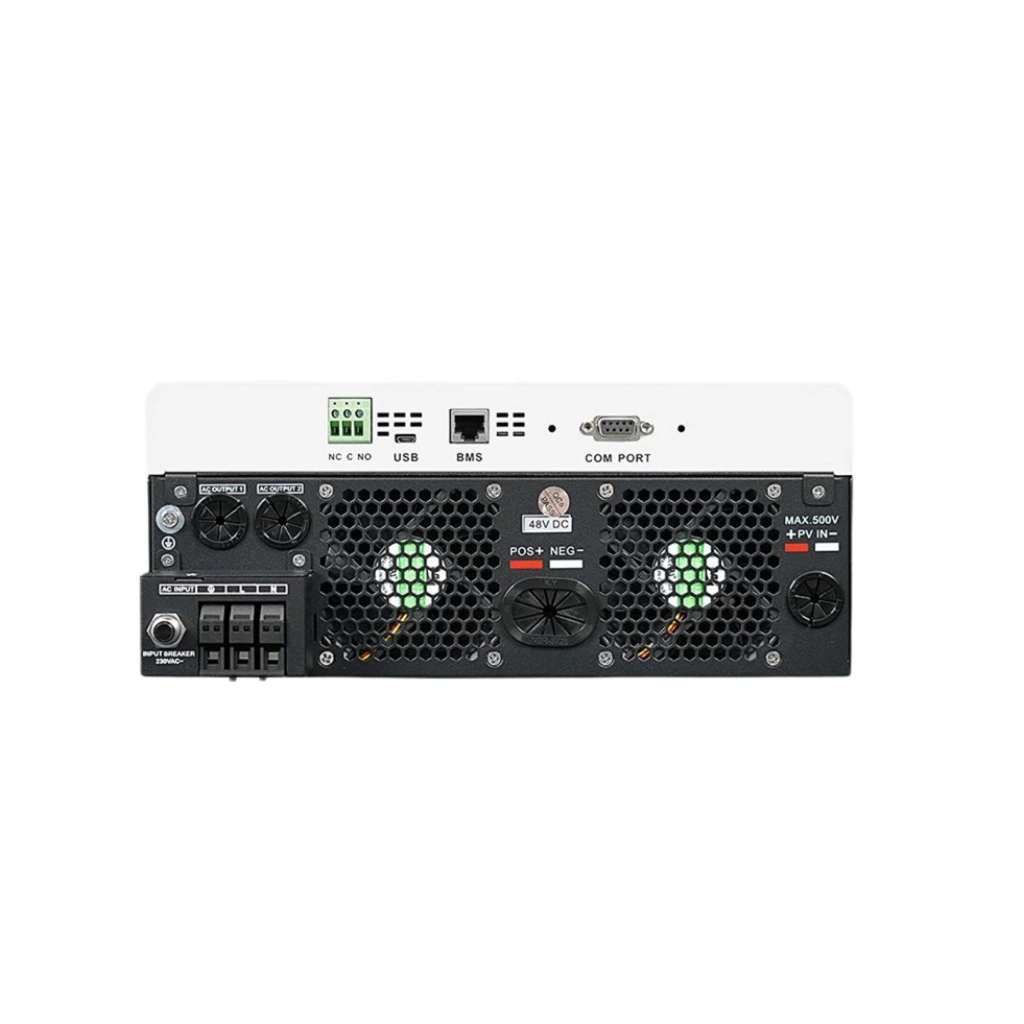

Communication Interface

·         USB / RS232 / RS485 (BMS) / Local WiFi / Dry-Contact

Operating Environment

·         Humidity: 5% – 95% RH (Non-Condensing)

·         Operating Temperature: −10 °C to 50 °C

·         Storage Temperature: −15 °C to 60 °C
